Bluey

Bluey

1980 911SC backdated to 1969 911S

Stunning, simple and understated. This backdate is timeless and classic.

This 1980 Porsche 911SC coupe has been backdated to represent a 1969 911S, retrofitted using all steel components. The chassis has a complete bare tub respray in Glacier Blue (very similar to Mexico Blue). It is fitted with a completely rebuilt and ceramic coated 1984 Carrera 3.2 DME engine with a 915 5-speed limited slip transmission, coil over suspension and big 4-piston brakes, plus a bespoke retro backdated interior in German red vinyl with a backdated dash and gauges. New 15x6 and 15x7R deep RSR-style Fuchs wear new Toyo R-1 tires.

The car is completely California compliant and will be delivered with a smog certification. This is a personal sale with a clean California title in the owner's name in hand.

Backdate and body

  • Brand new PCNA front fenders and front latch panel
  • Brand new steel 1972-style 911S bumper from Restoration Design
  • Rear flares cut from a 1969–1977; original undamaged 1969–1973 rear bumpers
  • All-steel front hood; deck lid modified to 1969 specifications
  • All 911S appearance group trim and rubber installed new
  • Welded steel non-sunroof top
  • Painted in Glacier Blue, paint code 326

Interior

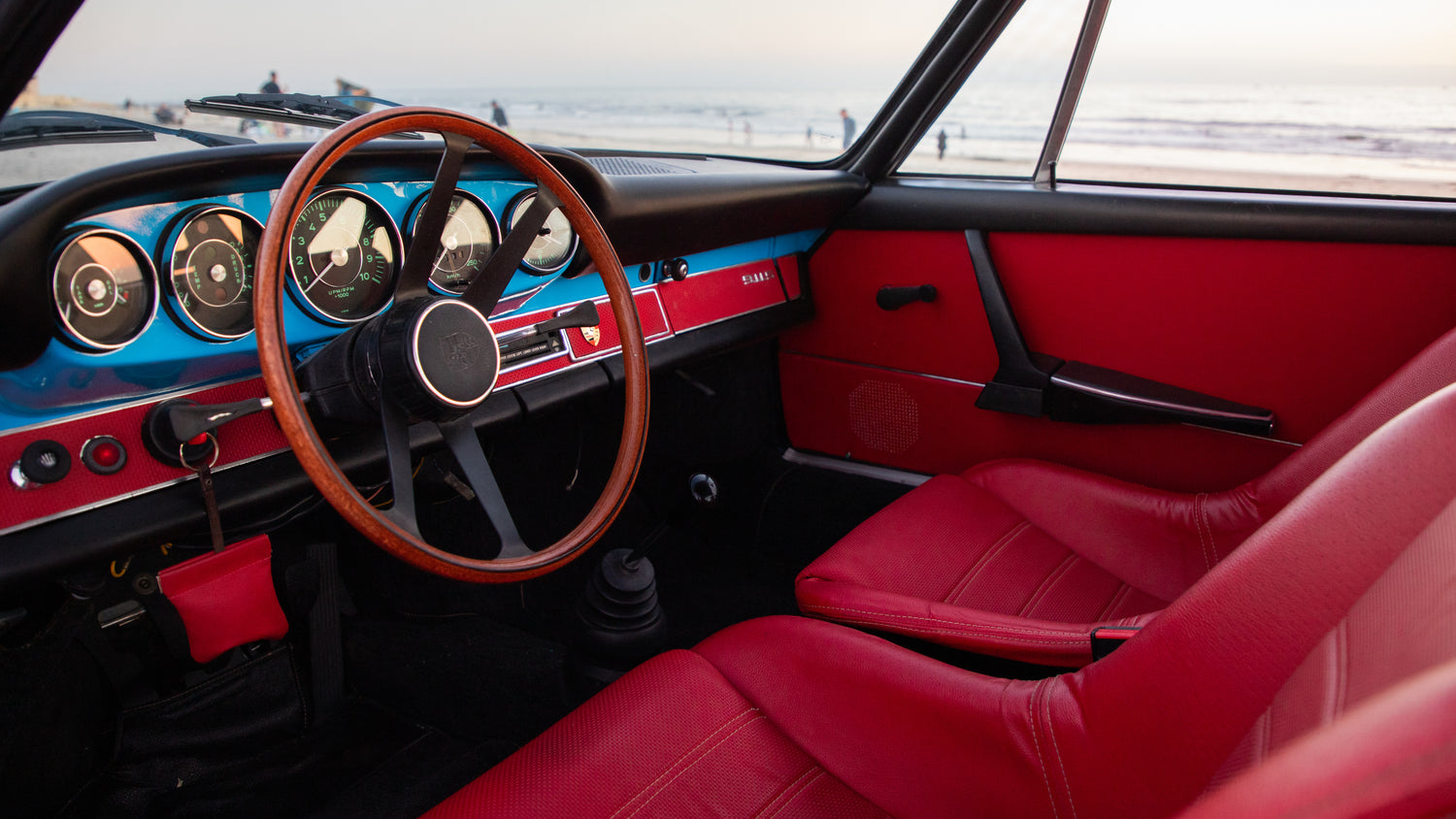

  • Bespoke waterline-style interior: black upper, red center, charcoal grey wool carpets
  • Custom black fiberglass late-1960s Recaro Sport Purpose-style seats in red German vinyl with tan contrast thread and adjustable headrests
  • One-off matching door panels with contrasting door pulls
  • Custom G-body style rear seat delete cover with aluminum accents; two-tone waterline rear parcel tray; Porsche retractable seat belts
  • Brand new PCNA dash; Haargarn wool carpets bound with tan thread; matching front bonnet carpets
  • Car-color intermediate dash section with aluminum panels and matching inserts
  • 901 green-style gauges from North Hollywood Speedometer
  • Aluminum radio delete with 356 orange bar hood crest, matching the wheel hub caps
  • 380mm wood 901-style steering wheel with leather hockey puck horn button
  • New PCNA red key for ignition, doors, glove box and hood, in a red leather squeeze pouch

Engine

  • 1984 Carrera 3.2, fully cleaned and ceramic coated (case, chain boxes, cam towers and transmission case in MAHLE high-temperature piston coat, rated to 1400°)
  • Studs and small parts in Glacier black ceramic, new zinc hardware throughout
  • Internals static and dynamically balanced; std/std crank polished and balanced
  • Stock 3.2 rods resized, rebushed, shot peened and balanced with new ARP bolts
  • New J&E 10.5:1 pistons in Mahle 95mm Nikasil cylinders
  • Heads rebuilt: new guides, new PCNA springs, 3-angle valve job, ports smoothed
  • OEM 964 RS camshafts; rebushed and polished rocker shafts
  • AASCO lightweight DME flywheel with new aluminum Sachs sport clutch
  • 6 new injectors, 2 new DME reference sensors, new head temp sensor
  • California emissions compliant: factory catalytic converter, emission decals, correct expansion tank, charcoal canister and new lines

Transmission, suspension and brakes

  • Completely rebuilt 915 with ceramic coated case, all new synchros, selectors and dogs
  • Limited slip differential with Swepco 201 gear oil
  • Unpainted stainless oil tank, black ceramic front oil lines, factory 930 front cooler with stone guard; all flexible oil lines replaced
  • Rear trailing arms ceramic coated Glacier black
  • RSR-style coil overs with new Bilstein RSR-valved struts at all four corners
  • Rear shock tower reinforcements and welded-in RSR front shock brace
  • Adjustable RSR-style front and rear sway bars
  • Big 4-piston calipers front and rear with new drilled rotors
  • RSR-style dual master cylinder pedal assembly with brake bias and RSR-style reservoirs
Base car
1980 911SC coupe
Style
1969 911S backdate
Paint
Glacier Blue (326)
Engine
1984 Carrera 3.2 DME, rebuilt
Pistons
J&E 10.5:1, Mahle 95mm
Cams
OEM 964 RS
Gearbox
915 5-speed, limited slip
Suspension
RSR-style coil overs, Bilstein
Brakes
Big 4-piston, drilled rotors
Wheels
15x6 / 15x7R deep Fuchs
Interior
Red German vinyl, waterline
Title
Clean CA title, smog legal

Photos

1 6
